Dental Lab Auxiliary Equipment for Wax, Polishing, Mixing and Prosthesis Workflows
NewroDent dental lab auxiliary equipment supports wax carving, titanium coloring, electrolytic polishing, hydraulic pressing, vacuum mixing, agar melting, surveying, articulation and high-speed zirconia carving workflows.
Electric wax knives, surveyors and air turbine tools for routine dental lab operations.
Electroplating, electrolytic polishing and hydraulic pressing options for dental restorations.
Vacuum mixing, agar melting and articulation tools to support consistent lab workflows.
Auxiliary Equipment Models
This category includes compact tools and support equipment for dental laboratory wax work, polishing, mixing, surveying, articulation and prosthesis preparation.
Single-Pen Electric Wax Knife
A single-pen electric wax knife for molding and shaping wax materials in dental laboratory workflows.
Request Quote ->

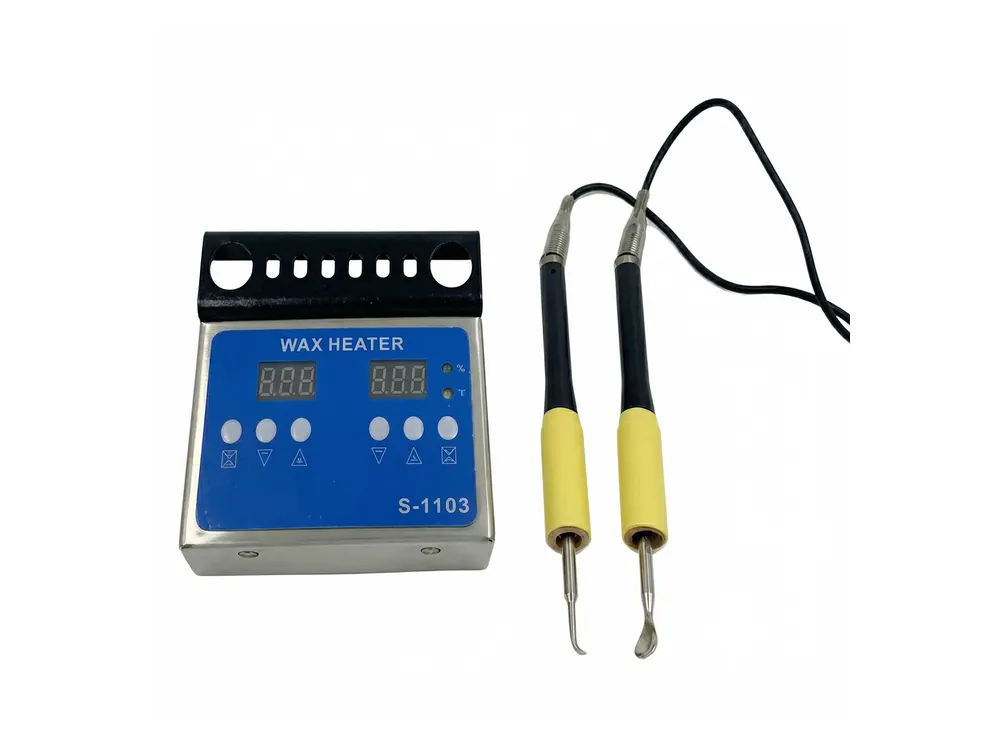

Dual-Pen Electric Wax Knife
A dual-pen digital electric wax knife with independent control for each pen and multiple wax tips.
Request Quote ->
Pure Titanium Electroplating Instrument
An electroplating instrument for anodizing and coloring pure titanium workpieces in dental laboratories.
Request Quote ->

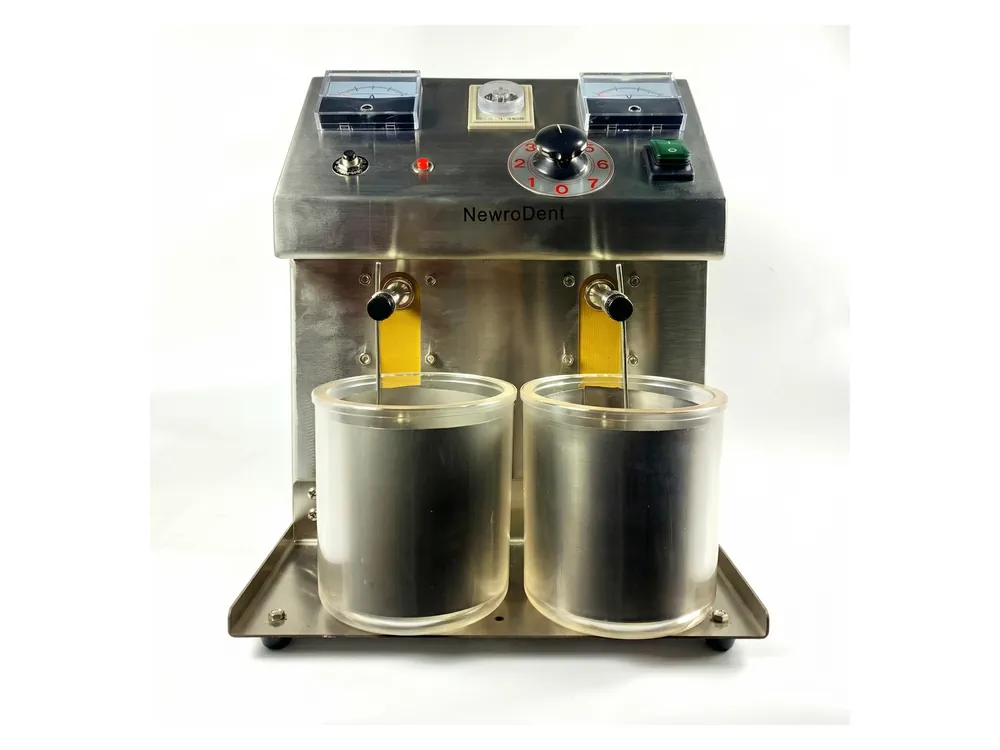

Electrolytic Polishing Machine with Two Cells
An electrolytic polishing machine for steel brackets and dental metal polishing workflows.
Request Quote ->

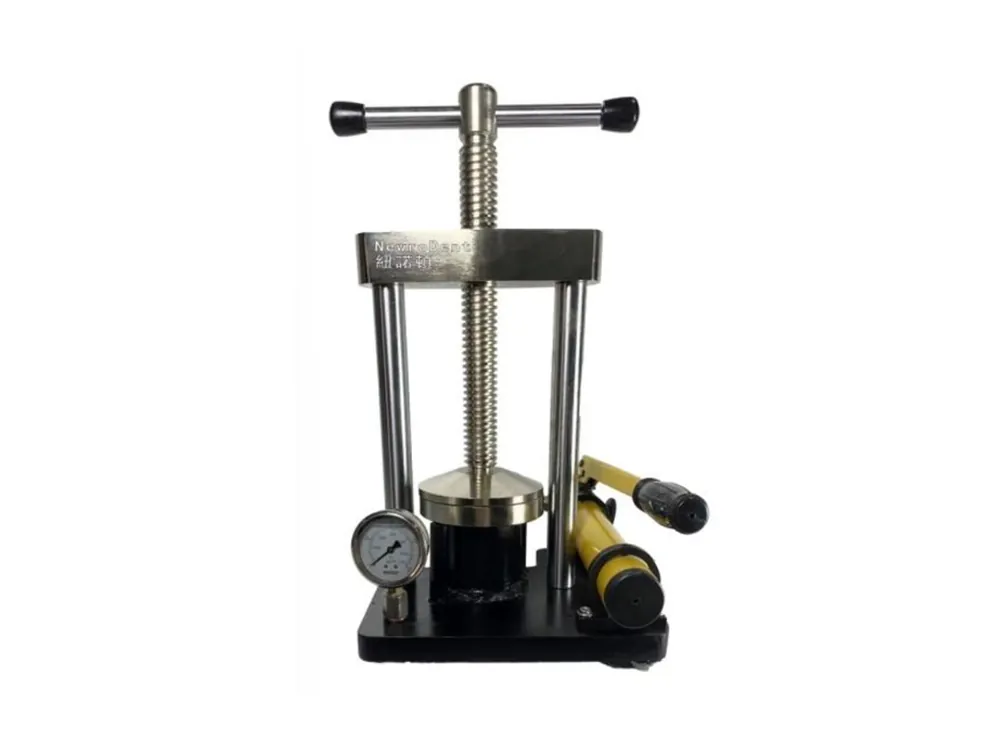

Hydraulic Press
A hydraulic press for moulding mobile prostheses in dental laboratory production workflows.
Request Quote ->

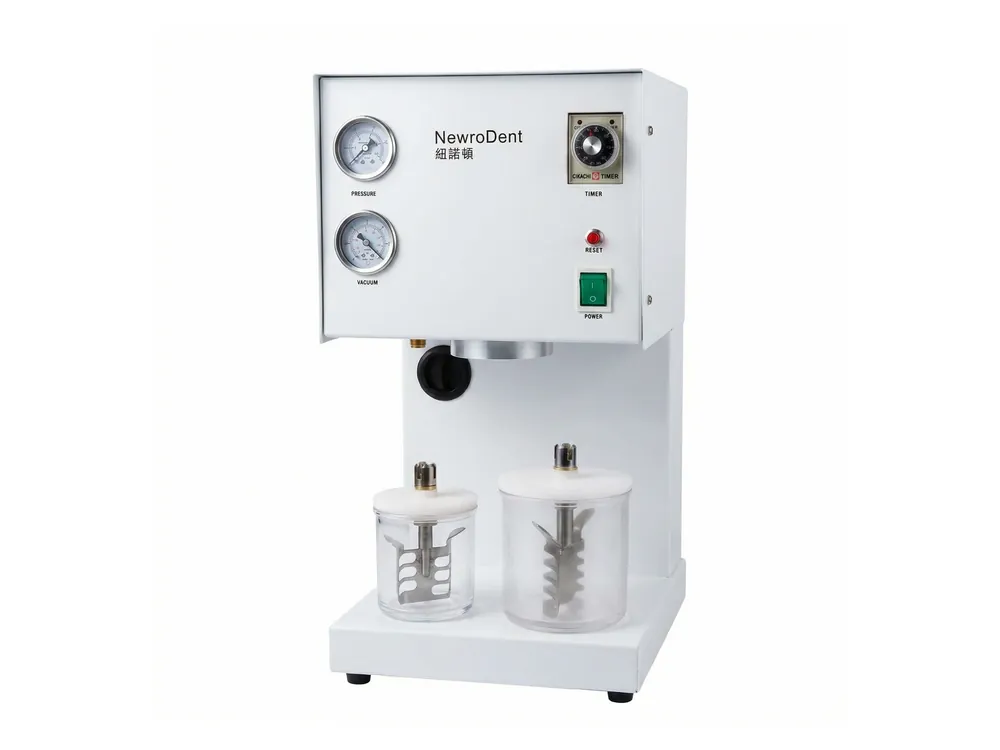

Vacuum Mixer
A vacuum mixer for gypsum and embedding material mixing with high vacuum suction and dual cups.
Request Quote ->
Agar Mixer
An agar mixer for melting and insulation of agar during dental laboratory replication workflows.
Request Quote ->

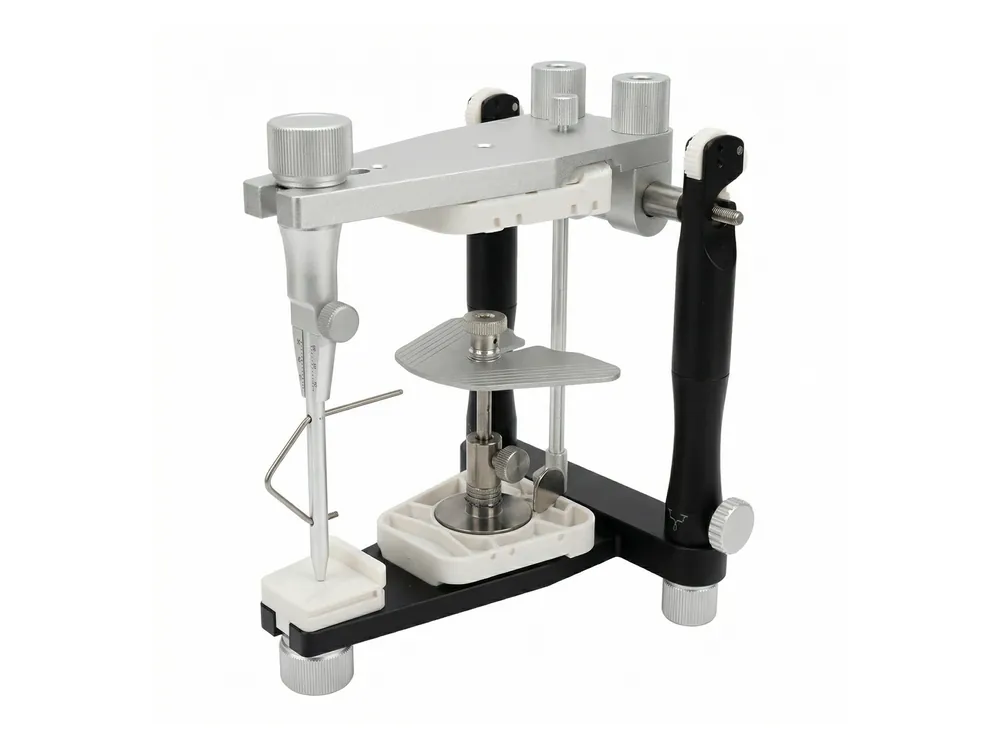

Semi-Adjustable Articulator
A semi-adjustable articulator for simulating mandibular movement and designing dental prostheses.
Request Quote ->
Adjustable Parallel Surveyor
An adjustable parallel surveyor for detecting and marking inverted denture models in dental laboratories.
Request Quote ->

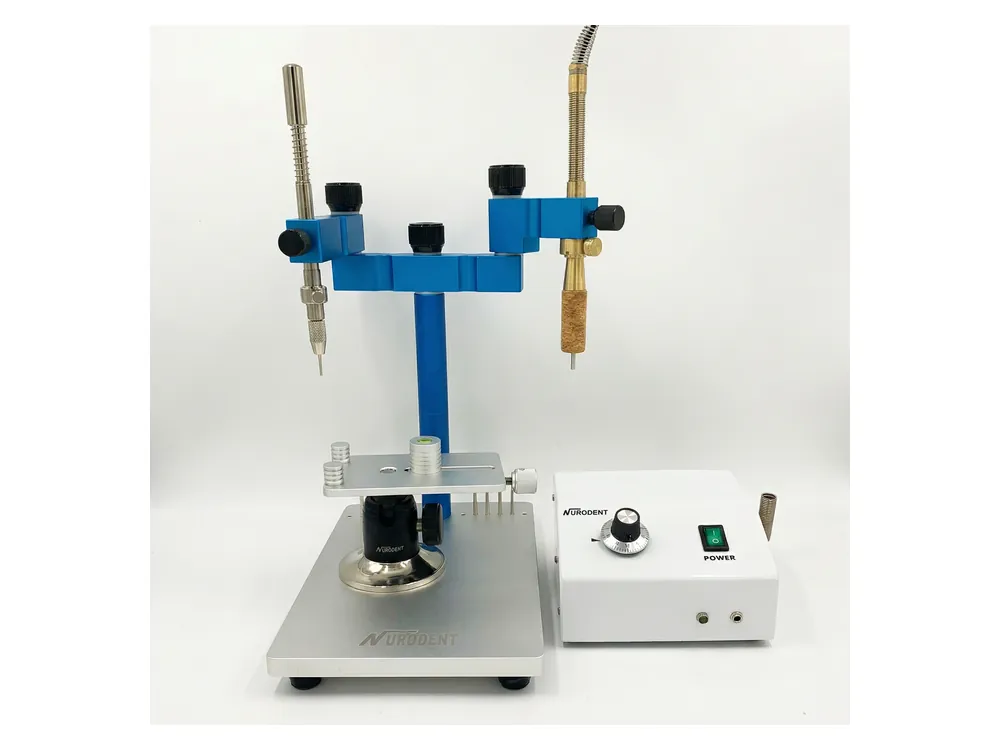

Wax Adjustable Parallel Surveyor
A wax adjustable parallel surveyor for denture model detection, marking and wax carving support.
Request Quote ->

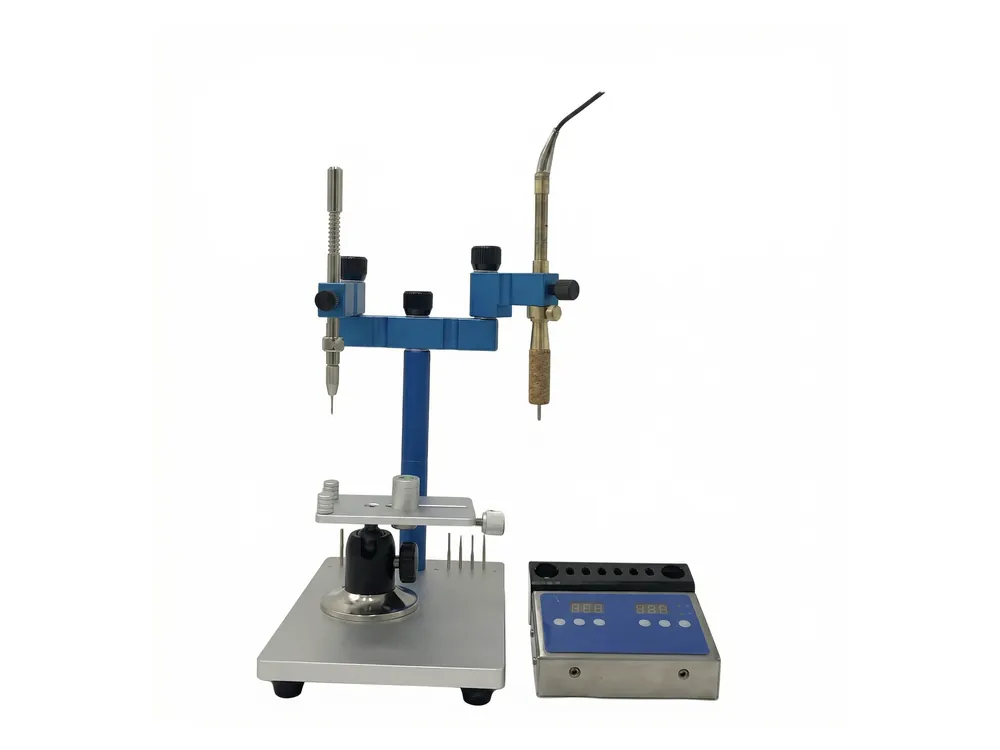

Wax Adjustable Parallel Surveyor
A wax adjustable parallel surveyor with bevel and flat scrapers for denture model workflows.
Request Quote ->

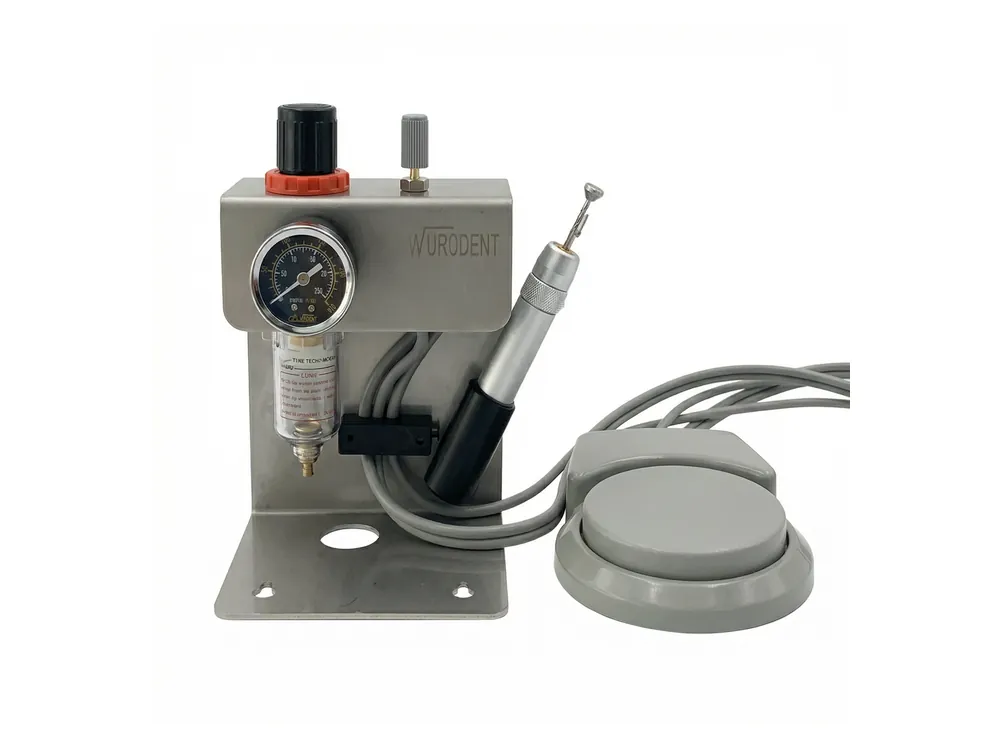

High Speed Air Turbine
A high-speed air turbine for carving tooth grooves and cutting unsintered zirconia in dental laboratories.
Request Quote ->How to Choose Dental Lab Auxiliary Equipment
Choose based on the workflow your lab wants to improve: wax work, titanium coloring, polishing, pressing, mixing, agar preparation, surveying, articulation or zirconia carving.
For wax and surveying work
Choose S-1101 or S-1103 for wax knife work, and CL-2005, CL-2006 or CL-2008 for denture model surveying and marking.
For polishing and prosthesis workflows
Choose S-1201 for titanium coloring, S-1202 for steel bracket polishing and S-1904 for mobile prosthesis moulding.
For material preparation and lab support
Choose S-901 for vacuum mixing, S-906 for agar preparation, CL-3303 for articulation and CL-108 for high-speed zirconia work.
Product Comparison
Use this comparison as a quick guide before requesting detailed specifications and quotation.
| Model | Product | Best For | Power / Type | Key Advantage |
|---|---|---|---|---|
| S-1101 | Single-Pen Electric Wax Knife | Wax molding and shaping | 9 W | Portable single-pen wax workflow |
| S-1103 | Dual-Pen Electric Wax Knife | Two-pen digital wax control | 9 W | Independent control for each pen |
| S-1201 | Pure Titanium Electroplating Instrument | Titanium anodizing and coloring | 500 W | Uniform plating layer |
| S-1202 | Electrolytic Polishing Machine | Steel bracket polishing | 350 W | Two-cell polishing workflow |
| S-1904 | Hydraulic Press | Mobile prosthesis moulding | 200 kg/cm2 | Safe pressure limit and airtight oil circuit |
| S-901 | Vacuum Mixer | Gypsum and embedding material mixing | 150 W | High vacuum suction with dual cups |
| S-906 | Agar Mixer | Agar melting and insulation | 800 W | 304 steel body and uniform heating |
| CL-3303 | Semi-Adjustable Articulator | Prosthesis design and occlusion simulation | Articulator | Magnetic mounts and facebow compatibility |
| CL-2005 | Adjustable Parallel Surveyor | Denture model marking | Manual tool | Multiple probe sizes and stable spindle |
| CL-2006 | Wax Adjustable Parallel Surveyor | Denture marking with wax carving tools | Manual tool | Wax carving tool upgrade |
| CL-2008 | Wax Adjustable Parallel Surveyor | Denture marking with scrapers | Manual tool | Bevel and flat scraper set |
| CL-108 | High Speed Air Turbine | Zirconia carving and cutting | Air turbine | Max 320,000 rpm performance |
Applications
FAQ
Which auxiliary equipment should I choose for wax work?
Choose S-1101 for a compact single-pen wax knife, or S-1103 if you need dual pens with independent digital control for more flexible wax workflows.
Which model is used for vacuum mixing?
S-901 is the vacuum mixer for gypsum and embedding material mixing. It includes high vacuum suction and dual 600 mL mixing cups.
Which products are used for denture model surveying?
CL-2005, CL-2006 and CL-2008 are parallel surveyor options for detecting and marking inverted denture models. CL-2006 and CL-2008 include wax-related tool upgrades.
Can NewroDent recommend auxiliary equipment by workflow?
Yes. Send your workflow, target model, voltage requirement and quantity. We can provide product details, catalog information and quotation support.
Need help choosing auxiliary equipment?
Tell us your daily lab workflow, target product type and voltage requirement. We can recommend suitable wax, polishing, mixing, surveying or prosthesis equipment.
